How to Make the Sky IR Sensors + UV ,Solar,Light ,
22/01/14 PCB Artwork

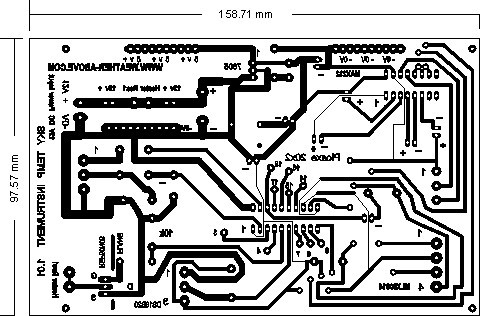

This is the artwork I used to make my infrared cloud temperature sensor
Which has outputs and inputs for the UV, solar, light sensor, rain sensor
Circuit board is a single sided size 100mm x 160mm
You can print out this artwork to make your own circuit board
If you cannot make your own circuit boards. There are many companies that will make prototype one-off single sided boards Using the industrial standard format GERBER file
Please note this project has been made in house using the same artwork PDF file the GERBER file format has not been used in my situation not tested has I make my own circuit boards using a different method
This project is for weather hobbyists who have an interest in electronics ,..
Please send an email if you would like the printed circuit board artwork in GERBER file format
Schematic artwork, Circuit board artwork where redrawn from diagrams supplied by "Niko of weather-watch" functional test programmes supplied by "Niko of weather-watch" Thank you for all the help. Circuit boards, were made in-house assembled and tested Weather-Above.com
